Impellers
​
JMP Marine (JMP Corp) Flexible & Bronze Impellers are specially designed and formulated giving the marine industry a high performance longer lasting product over all others! Why can we say this?
​
-
Total control of the manufacturing process with "IN HOUSE MANUFACTURING" meaning we do not outsource any part of the process, including materials, as all the other brands today must do. This ensures the highest standards of quality control making sure that its consumers, as yourself, have the utmost confidence and peace of mind. You will get the QUALITY & PERFORMANCE you are looking for and more!
-
DO NOT USE HARMFUL CHEMICALS thereby ensuring the protection of our environment. Products are "ROHS" FREE (ROHS means "Restriction of Hazardous Substances).
-
Development of a unique formula taken OVER 40 YEARS OF EXPERIENCE producing an impeller mixture that has been specifically designed for seawater & raw water applications resulting in a much more durable longer lasting product vs the Neoprene and Nitrile of other brands today.
-
JMP goes a step further in developing an added mixture called "WAX BRANDING" which is infused throughout the impeller material and has aided in the result of an impeller that can last up to 3 times longer vs the other brands.
-
Uses "BRASS INSERTS" vs stainless steel thereby producing a machined product that is of better quality resulting in a much MORE DURABLE LONGER LASTING PRODUCT.
​
Direct replacements for the folllowing brands:
Caterpillar, Cummins, Crusader, Detroit Diesel, Indmar, Jabsco, John Deere, Johnson, Kohler, Northern Lights, Onan, Perkins, Sherwood, Sierra, Volvo Penta, Westerbeke, Yanmar, and More.
​
JMP MARINE . . ."THE ONLY ONE"
​
​
​
IMPELLER QUICK REF GUIDE - Dimensions & Cross Reference
#6000-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
6000-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0026 (O-RING) - QTY:1
Glycerine 7gm (Impeller Lubricant) - QTY:1
​
Impeller Dimensions & Specs:
A (Impeller Dia): 32mm
B (Impeller Width): 12mm
C (Shaft Dia): 8mm
No. of Blades: 6
Insert Type: Single Flat Drive
Impeller Weight: 0.15lb (0.07kg)
​
Replacement / Equivalent To:
Jabsco 21414-0001 / 1414-0001
Yanmar 128170-42070
#7000-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7000-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0057 (GASKET) - QTY:1
ORG0031 (O-RING) - QTY:1
Glycerine 7gm (Impeller Lubricant) - QTY:1
​
Impeller Dimensions & Specs:
A (Impeller Dia): 39.7mm
B (Impeller Width): 19.2mm
C (Shaft Dia): 12mm
No. of Blades: 6
Insert Type: Slotted Shaft Pin Drive
Impeller Weight: 0.10lb (0.045kg)
​
Replacement / Equivalent To:
Jabsco 22405-0001
Johnson 09-808B
Onan 132-0310 / 132-0311
Volvo Penta 875583 / 3586496 / 21951342
Westerbeke 32620 / 46622
Sierra 23-2001 / 23-3306
#7001-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7001-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0033 (GASKET) - QTY:1
GAK0034 (GASKET) - QTY:1
GAK0035 (GASKET) - QTY:1
GAK0036 (GASKET) - QTY:1
Glycerine 7gm (Impeller Lubricant) - QTY:1
​
Impeller Dimensions & Specs:
A (Impeller Dia): 39.7mm
B (Impeller Width): 19.2mm
C (Shaft Dia): 9.5mm
No. of Blades: 6
Insert Type: Slotted Shaft Pin Drive
Impeller Weight: 0.15lb (0.07kg)
​
Replacement / Equivalent To:
Ancor 5043
CEF 500100
Jabsco 4528-0001 / 8293-0001 / 22429-0001
Johnson 09-806B, 09-806B-1
Perkins 24880272
Onan 132-0859
Sherwood 9979
Sierra 18-8952
Vetus IMP00501
Volvo Penta 803729 / 833550 / 875807 / 875807-0 / 876554-7 / 3586494
Yanmar 104211-42070 / 104211-42071
​
JMP Marine Pump(s) Using this Impeller:
JPR-PK10IH (Perkins - Kohler Replacement)
#7001-02 JMP Marine
Marine Flexible Bilge Impeller
Includes:
7001-02 (FLEXIBLE IMPELLER) - QTY:1
Glycerine 7gm (Impeller Lubricant) - QTY:1
​
Impeller Dimensions & Specs:
A (Impeller Dia): 39.7mm
B (Impeller Width): 19.2mm
C (Shaft Dia): 9.5mm
No. of Blades: 6
Insert Type: Slotted Shaft Pin Drive
Impeller Weight: 0.15lb (0.07kg)
​
Replacement / Equivalent To:
Jabsco 4528-0003
CEF 500201
#7013-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7013-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0031 (O-RING) - QTY:1
Glycerine 7gm (Impeller Lubricant) - QTY:1
​
Impeller Dimensions & Specs:
A (Impeller Dia): 39.7mm
B (Impeller Width): 19.2mm
C (Shaft Dia): 9.5mm
No. of Blades: 6
Insert Type: Single Flat Drive
Impeller Weight: 0.10lb (0.045kg)
​
Replacement / Equivalent To:
Sherwood 8000 / 8000K
Kohler 359978
Onan 132-0415 / 132-0430 / 132-0395
Sierra 23-2004 / 23-3314
#7050-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7050-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0051 (GASKET) - QTY:1
GAK0052 (GASKET) - QTY:1
ORG0052 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 51mm
B (Impeller Width): 22mm
C (Shaft Dia): 12mm
No. of Blades: 6
Pin Outside Dia.: 4.9mm
Insert Type: Slotted Shaft Pin Drive
Impeller Weight: 0.15lb (0.07kg)
​
Replacement / Equivalent To:
Jabsco 653-0001
Johnson 09-810B / 09-810B-1
Sierra 23-3307
Westerbeke 34440, 034440
Yanmar 128990-42200 / 128397-42200
​
JMP Marine Pump(s) Using This Impeller:
JPR-YM08IH (Yanmar Replacement)
JPR-YM08IH2 (Yanmar Replacement)
JPR-WB08IP (Westerbeke Replacement)
#7051-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7051-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0051 (GASKET) - QTY:1
GAK0052 (GASKET) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 51mm
B (Impeller Width): 22mm
C (Shaft Dia): 12.7mm
No. of Blades: 6
Insert Type: Slotted Shaft Pin Drive
Impeller Weight: 0.20lb (0.09kg)
​
Replacement / Equivalent To:
Jabsco 673-0001
Johnson 09-1026B
CEF 500116
Perkins 24880194
Volvo Penta 804696 / 897055 / 875808 / 3586497 / 3593659 / 22222936
​
JMP Marine Pump(s) Using This Impeller:
JPR-VP0010DA (Volvo Penta Replacement)
JPR-VP0010DB (Volvo Penta Replacement)
#7051-02 JMP Marine
Marine Flexible Bilge Impeller
Includes:
7051-02 (FLEXIBLE IMPELLER) - QTY:1
​
Impeller Dimensions & Specs:
A (Impeller Dia): 51mm
B (Impeller Width): 22mm
C (Shaft Dia): 12.7mm
No. of Blades: 6
Insert Type: Slotted Shaft Pin Drive
Impeller Weight: 0.20lb (0.09kg)
​
Replacement / Equivalent To:
Jabsco 673-0003
Johnson 09-1026B-9
CEF 500216
#7052-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7052-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0052 (GASKET) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 51mm
B (Impeller Width): 22mm
C (Shaft Dia): 12.7mm
No. of Blades: 6
Insert Type: Key Drive
Impeller Weight: 0.15lb (0.07kg)
​
Replacement / Equivalent To:
Jabsco 22799-0001
Yanmar 124223-42091 / 124223-42092 / 128296-42070
Kohler 250872 / 229955
Sierra 18-8950 / 23-2003 / 23-3304
#7053-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7053-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0052 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 51mm
B (Impeller Width): 22mm
C (Shaft Dia): 8mm
No. of Blades: 6
Insert Type: Single Flat Drive
Impeller Weight: 0.20lb (0.09kg)
​
Replacement / Equivalent To:
Jabsco 6303-0001
Johnson 09-824P
CEF 500210
Oberdorfer 6617
Yanmar 14242-050
#7053-02 JMP Marine
Marine Flexible Bilge Impeller
Includes:
7053-02 (FLEXIBLE IMPELLER) - QTY:1
​
Impeller Dimensions & Specs:
A (Impeller Dia): 51mm
B (Impeller Width): 22mm
C (Shaft Dia): 8mm
No. of Blades: 6
Insert Type: Single Flat Drive
Impeller Weight: 0.20lb (0.09kg)
​
Replacement / Equivalent To:
Jabsco 6303-0003
Johnson 09-824P
Ancor J050011
CEF 500145
#7054-01 JMP Marine
Marine Flexible Impeller
Includes:
7054-01 (FLEXIBLE IMPELLER) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 51mm
B (Impeller Width): 22mm
C (Shaft Dia): 12.7mm
No. of Blades: 6
Insert Type: Single Flat Drive
Impeller Weight: 0.20lb (0.09kg)
​
Replacement / Equivalent To:
Oberdorfer 6593 / 8514 / B6593
Onan 132-0316
#7070-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7070-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0052 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 51mm
B (Impeller Width): 22mm
C (Shaft Dia): 12mm
No. of Blades: 10
Insert Type: Slotted Shaft Pin Drive
Impeller Weight: 0.25lb (0.11kg)
​
Replacement / Equivalent To:
Jabsco 8653-0001, 18653-0001B
​
JMP Marine Pump(s) Using This Impeller:
JPR-NL08IH (Northern Lights Replacement)
#7071-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7071-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0036 (GASKET) - QTY:1
ORG0033 (O-RING) - QTY:1
ORG0035 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 51mm
B (Impeller Width): 22mm
C (Shaft Dia): 12.7mm
No. of Blades: 10
Insert Type: Slotted Shaft Pin Drive
Impeller Weight: 0.20lb (0.09kg)
​
Replacement / Equivalent To:
Jabsco 18673-0001
Northern Lights 25-12009
Sierra 23-2005 / 23-3315
#7072-01 JMP Marine
Marine Flexible Impeller
Includes:
7072-01 (FLEXIBLE IMPELLER) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 51mm
B (Impeller Width): 22mm
C (Shaft Dia): 12.7mm
No. of Blades: 10
Insert Type: Single Flat Drive
Impeller Weight: 0.20lb (0.09kg)
#7100-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7100-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0055 (GASKET) - QTY:1
GAK0060 (GASKET) - QTY:1
ORG0013 (O-RING) - QTY:1
ORG0045 (O-RING) - QTY:1
ORG0046 (O-RING) - QTY:1
ORG0061 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 57mm
B (Impeller Width): 31.5mm
C (Shaft Dia): 16mm
No. of Blades: 12
Insert Type: Spline Drive (12)
Impeller Weight: 0.30lb (0.14kg)
​
Replacement / Equivalent To:
Jabsco 1210-0001 / 1210-0001-P
Johnson 08-1027B / 09-1027B
Ancor 2040 / J050407
Caterpillar (CAT) 232-3198, 2323198
CEF 500107
Detroit Diesel 5194205
Northern Lights 12-12060 / 25-12060
Onan 131-0050 / 132-0162
Perkins 0460038 / 24880190
Sierra 18-3081
Vetus IMP00201
Volvo Penta 825940 / 829940 / 860203 / 875811 / 8758112 / 876243 / 877400 / 925940 / 3858256 / 3856039 / 3856039-7 / 3855546 / 3862567 / 3862465 / 21951346
Westerbeke 302571
Yanmar 129470-42530 / 129470-42531 / 129470-42532 / 129670-42530 / 129670-42531
​
JMP Marine Pump(s) Using This Impeller:
JPR-NL10IP (Northern Lights Replacement)
JPR-NL10IP2 (Northern Lights Replacement)
JPR-VP0020D (Volvo Penta Replacement)
JPR-YM04JHA (Yanmar Replacement)
JPR-YM04JHB (Yanmar Replacement)
#7100-02 JMP Marine
Marine Flexible Bilge Impeller
Includes:
7100-02 (FLEXIBLE IMPELLER) - QTY:1
​
Impeller Dimensions & Specs:
A (Impeller Dia): 57mm
B (Impeller Width): 31.5mm
C (Shaft Dia): 16mm
No. of Blades: 12
Insert Type: Spline Drive (12)
Impeller Weight: 0.30lb (0.14kg)
​
Replacement / Equivalent To:
CEF 500207
Jabsco 1210-0003
Johnson 09-1027B-9
Ancor 2040 / J050407
#7100H-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7100H-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0052 (O-RING) - QTY:1
​
Impeller Dimensions & Specs:
A (Impeller Dia): 57mm
B (Impeller Width): 31.85mm
C (Shaft Dia): 16mm
No. of Blades: 12
Insert Type: Spline Drive (12)
Impeller Weight: 0.40lb (0.18kg)
​
Replacement / Equivalent To:
Johnson 09-1027B-10 / 09-1027B-11 / 09-1027B-110 / 1027B-10 / 1027B-11 / 1027B-110
Volvo Penta 21951348 / 21213650 / 21213660
​
JMP Marine Pump(s) Using This Impeller:
JPR-VP4596G (Volvo Penta Gasoline Series Replacment Pump)
JPR-VP4599G (Volvo Penta Gasoline Series Replacement Pump)
JPR-VP4601G (Volvo Penta Gasoline Series Replacement Pump)
#7110-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7110-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0041 (GASKET) - QTY:1
GAK0042 (GASKET) - QTY:1
GAK0043 (GASKET) - QTY:1
ORG0040 (O-RING) - QTY:1
​
Impeller Dimensions & Specs:
A (Impeller Dia): 57mm
B (Impeller Width): 20mm
C (Shaft Dia): 12.7mm
No. of Blades: 12
Insert Type: Key Drive
Impeller Weight: 0.30lb (0.14kg)
​
Replacement / Equivalent To:
Sherwood 10077 / 10077K
Westerbeke 33112 / 11764 / 33100
Universal 287439
Onan 132-0358 /132-0375 / 132-0379 / 132-0459 / 132-0498 / 541-1519
Sierra 23-2000 / 23-3302 / 23-3310
Crusader 727103
Chris Craft 16.80-90047
#7136-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7136-01 (FLEXIBLE IMPELLER) - QTY:1
INSERT END CAP - QTY:1
GAK0061 (GASKET) - QTY:1
ORG0044 (O-RING) - QTY:1
ORG0052 (O-RING) - QTY:1
ORG0061 (O-RING) - QTY:1
​
Impeller Dimensions & Specs:
A (Impeller Dia): 57mm
B (Impeller Width): 48.2mm
C (Shaft Dia): 16mm
No. of Blades: 12
Insert Type: Spline Drive (12)
Impeller Weight: 0.25lb (0.11kg)
​
Replacement / Equivalent To:
Jabsco 13554-0001
Johnson 08-812B, 09-812B, 09-812B-110, 09-812B(T)-110
Volvo Penta 3588914, 3593660, 3595485, 3841696, 3842786, 21212794, 21213664, 21700443, 21951352, 21951354, 22307636
Yanmar 119773-42600-01, 119773-42600
Yamaha GTA-12457-00
Indmar 68-5007
Also used in Crusader
​
JMP Marine Pump(s) Using This Impeller:
JPR-CP25UH (Crank Mounted Replacement Pump)
JPR-VP0030DA (Volvo Penta Replacement)
JPR-VP0030DB (Volvo Penta Replacement)
JPR-VP2799G (Volvo Penta Gasoline Series Pump Replacement)
JPR-VP2800G (Volvo Penta Gasoline Series Pump Replacement)
JPR-VP5090G (Volvo Penta Gasoline Series Pump Replacement)
JPR-YM06LPA (Yanmar Replacement)
JPR-YM06LPB (Yanmar Replacement)
#7151-01 JMP Marine
Marine Flexible Impeller
Includes:
7151-01 (FLEXIBLE IMPELLER) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 57.5mm
B (Impeller Width): 31.2mm
C (Shaft Dia): 16mm
No. of Blades: 8
Insert Type: Slotted Shaft Pin Drive
Impeller Weight: 0.30lb (0.14kg)
​
Replacement / Equivalent To:
Nikkiso F15
#7172-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7172-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0023 (GASKET) - QTY:1
ORG0032 (O-RING) - QTY:1
ORG0039 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 62.5mm
B (Impeller Width): 22.4mm
C (Shaft Dia): 16mm
No. of Blades: 12
Insert Type: Key Drive
Impeller Weight: 0.30lb (0.14kg)
​
Replacement / Equivalent To:
Sherwood 9000 / 9000K
Kohler 229826
Sierra 23-2002 / 23-3303
Westerbeke 302875
​
JMP Marine Pump(s) Using This Impeller:
JPR-KL10IP (Kohler Replacement)
JPR-KL10IP2 (Kohler Replacement)
#7192-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7192-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0044 (GASKET) - QTY:1
GAK0046 (GASKET) - QTY:1
GAK0048 (GASKET) - QTY:1
GAK0049 (GASKET) - QTY:1
ORG0030 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 62.5mm
B (Impeller Width): 32mm
C (Shaft Dia): 16mm
No. of Blades: 12
Insert Type: Key Drive
Impeller Weight: 0.40lb (0.18kg)
​
Replacement / Equivalent To:
Jabsco 18838-0001
Johnson 09-701B-1
Onan 132-0117 / 132-0317
Sherwood 09959 / 09959K
Volvo Penta 835512 / 3854286
Sierra 23-3301 / 23-3313
Westerbeke 33104 / 11907
#7200-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7200-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0020 (GASKET) - QTY:1
ORG0046 (O-RING) - QTY:1
​
Impeller Dimensions & Specs:
A (Impeller Dia): 65mm
B (Impeller Width): 37mm
C (Shaft Dia): 16mm
No. of Blades: 8
Insert Type: Spline Drive (12)
Impeller Weight: 0.30lb (0.14kg)
​
Replacement / Equivalent To:
Jabsco 11979-0001
Yanmar 122610-42021
#7205-01 JMP Marine
Marine Flexible Impeller
Includes:
7205-01 (FLEXIBLE IMPELLER) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 65mm
B (Impeller Width): 45mm
C (Shaft Dia): 16mm
No. of Blades: 8
Insert Type: Hexa Spline Drive
Impeller Weight: 0.35lb (0.16kg)
​
Replacement / Equivalent To:
Nikkiso F20
#7300-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7300-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0023 (GASKET) - QTY:1
GAK0044 (GASKET) - QTY:1
GAK0045 (GASKET) - QTY:1
GAK0046 (GASKET) - QTY:1
GAK0047 (GASKET) - QTY:1
GAK0048 (GASKET) - QTY:1
ORG0013 (O-RING) - QTY:1
ORG0039 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 65mm
B (Impeller Width): 41.5mm
C (Shaft Dia): 15.8mm
No. of Blades: 12
Insert Type: Key Drive
Impeller Weight: 0.50lb (0.23kg)
​
Replacement / Equivalent To:
Ancor 2047
Crusader 20300
Cummins 3908220 / 0132-0348 / 0132-0499
Jabsco 18948-0001
Johnson 09-702B-1
Oberdorfer 8922
Onan 0132-0292 / 132-0348 / 132-0349 / 132-0499 / 0541-1316 / 541-1521 / 0541-1521
Perkins 900012
Pleasurecraft R061017
Sherwood 10615 / 10615K
Sierra 23-3300
Volvo Penta 835874
Westerbeke 13930
​
JMP Marine Pump(s) Using This Impeller:
JPR-C1025 (Cummins Replacement)
#7306-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7306-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0013 (O-RING) - QTY:1
​
Impeller Dimensions & Specs:
A (Impeller Dia): 65mm
B (Impeller Width): 41.5mm
C (Shaft Dia): 16mm
No. of Blades: 12
Insert Type: Spline Drive (12)
Impeller Weight: 0.40lb (0.18kg)
​
Replacement / Equivalent To:
Kashiyama SP-60
#7352-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7352-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0023 (GASKET) - QTY:1
GAK0044 (GASKET) - QTY:1
ORG0039 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 65mm
B (Impeller Width): 51mm
C (Shaft Dia): 15.8mm
No. of Blades: 12
Insert Type: Key Drive
Impeller Weight: 0.40lb (0.18kg)
​
Replacement / Equivalent To:
Cummins 3916720
Jabsco 18327-0001
Mercruiser 47-853126
Sherwood 15000 / 15000K
#7376-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7376-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0032 (O-RING) - QTY:1
ORG0075 (O-RING) - QTY:1
ORG0076 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 65.8mm
B (Impeller Width): 80mm
C (Shaft Dia): 25mm
No. of Blades: 12
Insert Type: Spline Drive (12)
Impeller Weight: 0.95lb (0.43kg)
​
Replacement / Equivalent To:
Johnson 08-821B / 09-821B / 09-821BT-01
Volvo Penta 876771 / 21951358 / 22994993/ 3887761 / 22000061
Yanmar 119574-42550 / 119574-42552 / 119578-42550
​
JMP Marine Pump(s) Using This Impeller:
JPR-VP0060DB (Volvo Penta Replacement)
JPR-YM06LY2 (Yanmar Replacement)
JPR-YM06LY3 (Yanmar Replacement)
#7400-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7400-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0016 (GASKET) - QTY:1
GAK0062 (GASKET) - QTY:1
ORG0013 (O-RING) - QTY:1
ORG0022 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 65mm
B (Impeller Width): 50mm
C (Shaft Dia): 16mm
No. of Blades: 8
Insert Type: Spline Drive (12)
Impeller Weight: 0.45lb (0.20kg)
​
Replacement / Equivalent To:
Cummins 650607
Caterpillar 2637536 / 263-7536
Detroit Diesel 5193602 / 5196629
Doosan 65.06084-0003
Jabsco 920-0001
Johnson 09-1028B / 09-1028B-1 / 09-1028BT-1
John Deere RE526661, RE49490
Kohler 352122
Northern Lights 25-11011
Onan 132-0436
Perkins 0460024 / 24880031 / 24880178
Sherwood 18200 / 18200K
Sierra 23-3308 / 23-3309
Volvo Penta 801277 / 825941 / 877061 / 875593 / 3841697 / 20799057 / 21422647 / 21951356
Yanmar 123325-42020 / 127610-42200 / 127610-42270 / 120650-42310
Nikkiso F20CBC
Kashiyama SP-70
​
JMP Marine Pump(s) Using This Impeller:
JPR-CT0440 (Caterpillar Replacement)
JPR-CT3054 (Caterpillar Replacement)
JPR-JD25UH (John Deere Replacement)
JPR-VP0040DB (Volvo Penta Replacement)
JPR-VP0050D (Volvo Penta Replacement)
JPR-V1000 (Volvo Penta Replacement)
JPR-NL20IP (Northern Lights Replacement)
JPR-M25IP (Multi-Purpose Electro-Magnetic Clutch Pump)
JPR-25UP (Multi-Purpose Electro-Magnetic Clutch Pump)
#7400-02 JMP Marine
Marine Flexible Bilge Impeller
Includes:
7400-02 (FLEXIBLE IMPELLER) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 65mm
B (Impeller Width): 50mm
C (Shaft Dia): 16mm
No. of Blades: 8
Insert Type: Spline Drive (12)
Impeller Weight: 0.40lb (0.18kg)
​
Replacement / Equivalent To:
Jabsco 920-0003
Johnson 09-1028B-9
#7405-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7405-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0013 (O-Ring) QTY:1
​
Impeller Dimensions & Specs:
A (Impeller Dia): 65mm
B (Impeller Width): 50mm
C (Shaft Dia): 16mm
No. of Blades: 8
Insert Type: Hexa Spline Drive
Impeller Weight: 0.40lb (0.18kg)
#7420-01 JMP Marine
Marine Flexible Impeller
Includes:
7420-01 (FLEXIBLE IMPELLER) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 65mm
B (Impeller Width): 68mm
C (Shaft Dia): 15.8mm
No. of Blades: 10
Insert Type: Spline Drive (12)
Impeller Weight: 0.60lb (0.27kg)
​
Replacement / Equivalent To:
Jabsco 31130-0061
Yanmar 119593-42200
#7426-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7426-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0016 (GASKET) - QTY:1
ORG0013 (O-RING) - QTY:1
ORG0071 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 65mm
B (Impeller Width): 50mm
C (Shaft Dia): 15.8mm
No. of Blades: 10
Insert Type: Spline Drive (12)
Impeller Weight: 0.40lb (0.18kg)
​
Replacement / Equivalent To:
Ancor J050009
Caterpillar (CAT) 7C-3286, 7C3286
CEF 500114
Jabsco 17937-0001 / 17937-0001P
Detroit Diesel 5193602
Mercruiser 47-8013326-01
Oberdorfer 7441
Perkins 0460024 / 24880031
Vetus IMP00301
Volvo Penta 3588475 / 801277 / 825941 / 877061-2
Yanmar 127610-42200
​
JMP Marine Pump(s) Using This Impeller:
JPR-G6000F (Detroit Diesel Replacement)
JPR-G6010F (Detroit Diesel Replacement)
JPR-VP0040DA (Volvo Penta Replacement)
#7426-02 JMP Marine
Marine Flexible Bilge Impeller
Includes:
7426-02 (FLEXIBLE IMPELLER) - QTY:1
​
Impeller Dimensions & Specs:
A (Impeller Dia): 65mm
B (Impeller Width): 50mm
C (Shaft Dia): 15.8mm
No. of Blades: 10
Insert Type: Spline Drive (12)
Impeller Weight: 0.40lb (0.18kg)
​
Replacement / Equivalent To:
Jabsco 17937-0003
Mercruiser 47-59362
Oberdorfer 7441
#7436-01 JMP Marine
Marine Flexible Impeller
Includes:
7436-01 (FLEXIBLE IMPELLER) - QTY:1
​
Impeller Dimensions & Specs:
A (Impeller Dia): 65mm
B (Impeller Width): 50mm
C (Shaft Dia): 15.8mm
No. of Blades: 10
Insert Type: Spline Drive (12)
Impeller Weight: 0.40lb (0.18kg)
​
Replacement / Equivalent To:
Yanmar 72X-12457-00
#7446-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7446-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0067 (O-RING) - QTY:1
ORG0071 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 65mm
B (Impeller Width): 76mm
C (Shaft Dia): 16mm
No. of Blades: 8
Insert Type: Spline Drive (12)
Impeller Weight: 0.65lb (0.30kg)
​
Replacement / Equivalent To:
Caterpillar (CAT) 3N-5895, 3N5895
Jabsco 7018-0001 / 17018-0001P
Volvo Penta 3583602 / 3593573 / 3817587 / 3819486 / 21730348
​
JMP Marine Pump(s) Using This Impeller:
JPR-VP0090D (Volvo Penta Replacement)
JPR-VP0060DA (Volvo Penta Replacement)
JPR-VP0110DB (Volvo Penta Replacement)
#7500-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7500-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0014 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 79mm
B (Impeller Width): 54mm
C (Shaft Dia): 20mm
No. of Blades: 8
Insert Type: Key Drive
Impeller Weight: 0.65lb (0.30kg)
​
Replacement / Equivalent To:
Doosan 60.06804-0003
Nikkiso F25KBC
#7501-01 JMP Marine
Marine Flexible Impeller
Includes:
7501-01 (FLEXIBLE IMPELLER) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 79mm
B (Impeller Width): 53.3mm
C (Shaft Dia): 20mm
No. of Blades: 8
Insert Type: Spline Drive (12)
Impeller Weight: 0.65lb (0.30kg)
#7502-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7502-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0014 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 79mm
B (Impeller Width): 54mm
C (Shaft Dia): 19mm
No. of Blades: 8
Insert Type: Double Flat Drive
Impeller Weight: 0.65lb (0.30kg)
​
JMP Marine Pump(s) Using This Impeller:
JPR-32LP Multi-Purpose Pump
JPR-32UF Multi-Purpose Pump
#7526-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7526-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0014 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 79mm
B (Impeller Width): 54mm
C (Shaft Dia): 20mm
No. of Blades: 9
Insert Type: Spline Drive (12)
Impeller Weight: 0.65lb (0.30kg)
​
Replacement / Equivalent To:
Yanmar 128620-42200
Kashiyama KP-100
#7556-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7556-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0014 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 80mm
B (Impeller Width): 75mm
C (Shaft Dia): 20mm
No. of Blades: 9
Insert Type: Spline Drive (12)
Impeller Weight: 0.90lb (0.41kg)
​
Replacement / Equivalent To:
Kashiyama SP-170
#7600-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7600-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0030 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 82.4mm
B (Impeller Width): 73.4mm
C (Shaft Dia): 20mm
No. of Blades: 12
Insert Type: Key Drive
Impeller Weight: 1.10lb (0.50kg)
​
Replacement / Equivalent To:
Caterpillar (CAT) 1W-5664 / 1W5664 / 7E-0321 / 7E0321
Cummins 3802444, 3897337, 3916852, 3925236
Jabsco 18958-0001
Johnson 09-704BT-1
John Deere RE49896
Sherwood 17000 / 17000K
#7608-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
7608-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0030 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 82.4mm
B (Impeller Width): 73.4mm
C (Shaft Dia): 20mm
No. of Blades: 12
Insert Type: Spline Drive (11)
Impeller Weight: 1.20lb (0.54kg)
​
Replacement / Equivalent To:
Cummins 3974456
Sherwood 27000, 27000K
​
JMP Marine Pump(s) Using This Impeller:
JPR-S7632 (Caterpillar Replacement)
JPR-S7627 (Cummins Replacement)
JPR-S7630 (Cummins Replacement)
JPR-S7608 (Cummins Replacement)
JPR-S7619 (John Deere Replacement)
JPR-S7633 (John Deere Replacement)
#8000-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
8000-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0007 (GASKET) - QTY:1
ORG0015 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 95mm
B (Impeller Width): 63mm
C (Shaft Dia): 25mm
No. of Blades: 9
Insert Type: Spline Drive (12)
Impeller Weight: 1.10lb (0.50kg)
​
Replacement / Equivalent To:
Ancor 2717 / J050005
Caterpillar (CAT) 1L-4774 / 1L4774
CEF 500105
Cummins 160596 / 166758 / 556540 / 556850 / 21601R
Detroit Diesel 5193553
Jabsco 836-0001 / 836-0001-P
Johnson 09-1029B
Perkins 460027
Sierra 18-3037
Vetus IMP00901
Volvo Penta 804696 / 807904 / 825942 / 875660 / 875736 / 875808-8 / 897055 / 21730344
Note: Early TMD series Volvo Penta used Impeller 8000-01 (9 blades) as engine speed was not as high. The 8100-01 Impeller (12 blades) was needed for Volvo Penta High Speed Engine's. Use Impeller #8100-01 if your Volvo Penta Engine is not the early TMD series engines.
Yanmar 127881-42050
Nikkiso F40CBC
Kashiyama SP-200, SP-220
​
JMP Marine Pump(s) Using This Impeller:
JPR-VP0110DA (Volvo Penta Replacement)
#8000-02 JMP Marine
Marine Flexible Bilge Impeller
Includes:
8000-02 (FLEXIBLE IMPELLER) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 95mm
B (Impeller Width): 63mm
C (Shaft Dia): 25mm
No. of Blades: 9
Insert Type: Spline Drive (12)
Impeller Weight: 1.15lb (0.52kg)
​
Replacement / Equivalent To:
Ancor J0540505
CEF 500205
Jabsco 836-0003
Johnson 09-1029B-9
#8001-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
8001-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0007 (GASKET) - QTY:1
ORG0015 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 95mm
B (Impeller Width): 63mm
C (Shaft Dia): 25mm
No. of Blades: 9
Insert Type: Double Flat Drive
Impeller Weight: 1.10lb (0.50kg)
​
Replacement / Equivalent To:
Doosan 60.06804-0010
​
JMP Marine Pump(s) Using This Impeller:
JPR-C1040 (Cummins Replacement)
JPR-M40LH (Multi-Purpose Pump)
JPR-40LP (Multi-Purpose Pump)
JPR-40UF (Multi-Purpose Pump)
#8002-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
8002-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0015 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 95mm
B (Impeller Width): 63mm
C (Shaft Dia): 25mm
No. of Blades: 9
Insert Type: Hexa Spline Drive
Impeller Weight: 1.10lb (0.50kg)
​
Replacement / Equivalent To:
Doosan 60.06804-0004
Nikkiso F40
Kashiyama SPM-200
#8016-01 JMP Marine
Marine Flexible Impeller
Includes:
8016-01 (FLEXIBLE IMPELLER) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 95mm
B (Impeller Width): 43mm
C (Shaft Dia): 25mm
No. of Blades: 9
Insert Type: Spline Drive (12)
Impeller Weight: 0.75lb (0.34kg)
​
Replacement / Equivalent To:
Kashiyama SP-150
#8100-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
8100-01 (FLEXIBLE IMPELLER) - QTY:1
GAK000701 (GASKET) QTY:1
GAK0007 (GASKET) QTY:1
ORG0015 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 95mm
B (Impeller Width): 63mm
C (Shaft Dia): 25mm
No. of Blades: 12
Insert Type: Spline Drive (12)
Impeller Weight: 1.25lb (0.57kg)
​
Replacement / Equivalent To:
Ancor J050035
Caterpillar (CAT) 5L6042 / 5L-6042 / 5N-9360 / 5N9360 / 1W-9046 / 1W9046
CEF 500135
Detroit Diesel 5193553, 5196628, 8924838
Jabsco 17935-0001
Johnson 09-819B
Onan 500135
Perkins 7054
Volvo Penta 807904, 825942, 875660, 875736, 857636-1, 877066, 21730344, 21951362
Note: Early TMD Series models from Volvo Penta uses Impeller #8000-01K (9 bladed impeller) due to the lower engine speeds; if this is the case for your engine model please use impeller #8000-01K. Impeller #8100-01K (12 bladed impeller) is needed for high speed Volvo Penta engine models.
​
JMP Marine Pump(s) Using This Impeller:
JPR-CT3306 (Caterpillar Replacement)
JPR-G6100 (Detroit Diesel Replacement)
JPR-V2000 (Volvo Penta Replacement)
#8100-02 JMP Marine
Marine Flexible Bilge Impeller
Includes:
8100-02 (FLEXIBLE IMPELLER) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 95mm
B (Impeller Width): 63mm
C (Shaft Dia): 25mm
No. of Blades: 12
Insert Type: Spline Drive (12)
Impeller Weight: 1.10lb (0.50kg)
​
Replacement / Equivalent To:
Ancor J050435
Jabsco 17935-0003
Johnson 09-819B-9
#8101-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
8101-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0015 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 95mm
B (Impeller Width): 63mm
C (Shaft Dia): 25mm
No. of Blades: 12
Insert Type: Double Flat Drive
Impeller Weight: 1.10lb (0.50kg)
​
JMP Marine Pump(s) Using This Impeller:
JPR-VK2000 (Multi-Purpose Pump)
#8159-01K JMP Marine
Marine Flexible Impeller Kit
NEW FEATURE!
Now manufactured with threads for easy removal using an impeller puller.
​
Kit Includes:
8159-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0015 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 95mm
B (Impeller Width): 80mm
C (Shaft Dia): 25mm
No. of Blades: 12
Insert Type: Spline Drive (10)
Impeller Weight: 1.40lb (0.64kg)
​
Replacement / Equivalent To:
Sherwood 26000 / 26000K
Cummins 3972366
​
JMP Marine Pump(s) Using This Impeller:
JPR-C0700 (Cummins Replacement)
JPR-C0830 (Cummins Replacement)
#8200-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
8200-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0007 (GASKET) QTY:1
ORG0015 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 95mm
B (Impeller Width): 88.8mm
C (Shaft Dia): 25mm
No. of Blades: 9
Insert Type: Spline Drive (12)
Impeller Weight: 1.35lb (0.62kg)
​
Replacement / Equivalent To:
Ancor JP50015
CEF 500245
Jabsco 6760-0001
Johnson 09-802B
Perkins 0460027
Volvo Penta 842857, 844683, 845796
Yanmar 125613-42762
Kashiyama SP-280
​
JMP Marine Pump(s) Using This Impeller:
JPR-50LP (Multi-Purpose Pump)
JPR-50UF (Multi-Purpose Pump)
#8200-02 JMP Marine
Marine Flexible Bilge Impeller
Includes:
8200-02 (FLEXIBLE IMPELLER) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 95mm
B (Impeller Width): 88.8mm
C (Shaft Dia): 25mm
No. of Blades: 9
Insert Type: Spline Drive (12)
Impeller Weight: 1.40lb (0.64kg)
​
Replacement / Equivalent To:
Jabsco 6760-0003, 6760-003
#8201-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
8201-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0015 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 95mm
B (Impeller Width): 88.5mm
C (Shaft Dia): 25mm
No. of Blades: 9
Insert Type: Double Flat Drive
Impeller Weight: 1.35lb (0.62kg)
​
Replacement / Equivalent To:
Doosan 65.06804-0001
​
JMP Marine Pump(s) Using This Impeller:
JPR-50LP (Multi-Purpose Pump)
JPR-50UF (Multi-Purpose Pump)
#8250-01 JMP Marine
Marine Flexible Impeller
Includes:
8250-01 (FLEXIBLE IMPELLER) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 95mm
B (Impeller Width): 95mm
C (Shaft Dia): 25mm
No. of Blades: 9
Insert Type: Spline Drive (12)
Impeller Weight: 1.35lb (0.62kg)
​
Replacement / Equivalent To:
Yanmar 148687-42830
#8300-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
8300-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0008 (GASKET) - QTY:1
ORG0015 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 95mm
B (Impeller Width): 88.8mm
C (Shaft Dia): 25mm
No. of Blades: 12
Insert Type: Double Flat Drive
Impeller Weight: 1.60lb (0.73kg)
​
Replacement / Equivalent To:
Caterpillar (CAT) 3N-1888 / 3N1888 / 3N-4859 / 3N4859
Cummins 217308
Detroit Diesel 8927570
Jabsco 17370-0001
Doosan 60.06804-0011
​
JMP Marine Pump(s) Using This Impeller:
JPR-G6300 (Detroit Diesel Replacement)
JPR-CT3406 (Caterpillar Replacement)
JPR-C1050 (Cummins Replacement)
#8301-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
8301-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0007 (GASKET) - QTY:1
ORG0015 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 95mm
B (Impeller Width): 88.8mm
C (Shaft Dia): 25mm
No. of Blades: 12
Insert Type: Spline Drive (12)
Impeller Weight: 1.50lb (0.68kg)
​
Replacement / Equivalent To:
Caterpillar (CAT) 4L-8470 / 4L8470
Cummins 008503
Detroit Diesel 5196168 / 8924839
Jabsco 17936-0001 / 179360001
Johnson 09-814B / 08-814B
Perkins 460027
Scania 323 897 / 323897
Volvo Penta 842857 / 844683 / 845796 / 875697 / 21951364
​
JMP Marine Pump(s) Using This Impeller:
JPR-G6200 (Detroit Diesel Replacement)
JPR-V3000 (Volvo Penta Replacement)
JPR-V5000 (Volvo Penta Replacement)
JPR-SC50IF (Scania Replacement)
JPR-VK3000 (Multi-Purpose Pump)
#8326-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
8326-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0015 (O-RING) - QTY:1
ORG0059 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 95mm
B (Impeller Width): 95mm
C (Shaft Dia): 25mm
No. of Blades: 12
Insert Type: Spline Drive (12)
Impeller Weight: 1.50lb (0.68kg)
​
Replacement / Equivalent To:
Jabsco 17938-0001
Volvo Penta 3830459
​
JMP Marine Pump(s) Using This Impeller:
JPR-VP0120D (Volvo Penta Replacement)
JPR-VP0130D (Volvo Penta Replacement)
JPR-VP0160D (Volvo Penta Replacement)
#8350-01K JMP Marine
Marine Flexible Impeller Kit
NEW FEATURE!
Now manufactured with threads for easy removal using an impeller puller.
​
Kit Includes:
8350-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0043 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 95mm
B (Impeller Width): 101.5mm
C (Shaft Dia): 24mm
No. of Blades: 12
Insert Type: Spline Drive (14)
Impeller Weight: 1.65lb (0.75kg)
​
Replacement / Equivalent To:
Caterpillar (CAT) 248-5561 / 2845561 / 282-0683 / 2820683 / 09-5324 / 095324 / 109-5327 / 1095327 / 123-0492 / 1230492 / 123-9785 / 1239785
Cummins 4019403 / 4933743
Jabsco 09-705BT-1
Sherwood 18000 / 18000K
​
JMP Marine Pump(s) Using This Impeller:
JPR-JD60IF (John Deere Replacement)
#8359-01K JMP Marine
Marine Flexible Impeller Kit
NEW FEATURE!
Now manufactured with threads for easy removal using an impeller puller.
​
Kit Includes:
8359-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0043 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 95mm
B (Impeller Width): 101.5mm
C (Shaft Dia): 24mm
No. of Blades: 12
Insert Type: Spline Drive (10)
Impeller Weight: 1.65lb (0.75kg)
​
Replacement / Equivalent To:
Caterpillar (CAT) 296-8388 / 2968388
Cummins 4933742
John Deere DZ108622
Sherwood 29000 / 29000K
​
JMP Marine Pump(s) Using This Impeller:
JPR-C1100 (Cummins Replacement)
JPR-CT1200R (Caterpillar Replacement)
JPR-CT1800R (Caterpillar Replacement)
JPR-JD60IF2 (John Deere Replacement)
#8400-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
8350-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0019 (GASKET) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 100mm
B (Impeller Width): 100mm
C (Shaft Dia): 25mm
No. of Blades: 9
Insert Type: Spline Drive (12)
Impeller Weight: 1.75lb (0.79kg)
​
JMP Marine Pump(s) Using This Impeller:
JPR-50LPL (Multi-Purpose Pump)
JPR-M50LPL (Multi-Purpose Pump)
#8406-01 JMP Marine
Marine Flexible Impeller
Includes:
8406-01 (FLEXIBLE IMPELLER) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 100mm
B (Impeller Width): 100mm
C (Shaft Dia): 25mm
No. of Blades: 10
Insert Type: Spline Drive (12)
Impeller Weight: 1.50lb (0.68kg)
#8457-01K JMP Marine
Marine Flexible Impeller Kit
NEW FEATURE!
Now manufactured with threads for easy removal using an impeller puller.
​
Kit Includes:
8457-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0080 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 114.4mm
B (Impeller Width): 109.6mm
C (Shaft Dia): 24mm
No. of Blades: 10
Insert Type: Spline Drive (14)
Impeller Weight: 2.50lb (1.13kg)
​
Replacement / Equivalent To:
Caterpillar (CAT) 153-9123 / 1539123
Sherwood 22000 / 22000K
#8459-01K JMP Marine
Marine Flexible Impeller Kit
NEW FEATURE!
Now manufactured with threads for easy removal using an impeller puller.
​
Kit Includes:
8459-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0080 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 114.4mm
B (Impeller Width): 109.6mm
C (Shaft Dia): 24mm
No. of Blades: 10
Insert Type: Spline Drive (10)
Impeller Weight: 2.50lb (1.13kg)
​
Replacement / Equivalent To:
Caterpillar (CAT) 322-8595 / 3228595
Sherwood 30000 / 30000K
​
JMP Marine Pump(s) Using This Impeller:
JPR-CT3200R (Caterpillar Replacement - C32)
JSM0140 - Minor Kit (Replaces CAT 3047615, Sherwood 25017)
JSK0140 - Major Kit (Replaces CAT 3047616, Sherwood 25154)
#8503-01 JMP Marine
Marine Flexible Impeller
Includes:
8503-01 (FLEXIBLE IMPELLER) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 110mm
B (Impeller Width): 75.5mm
C (Shaft Dia): 25mm
No. of Blades: 10
Insert Type: Single Flat Drive
Impeller Weight: 1.50lb (0.68kg)

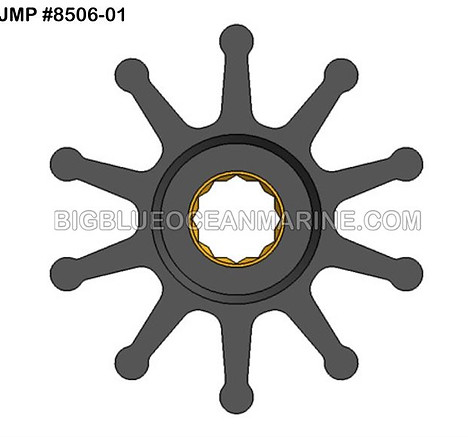

#8506-01 JMP Marine
Marine Flexible Impeller
Includes:
8506-01 (FLEXIBLE IMPELLER) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 110mm
B (Impeller Width): 75.5mm
C (Shaft Dia): 25mm
No. of Blades: 10
Insert Type: Spline Drive (12)
Impeller Weight: 1.65lb (0.75kg)
#9000-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
9000-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0047 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 117mm
B (Impeller Width): 88.5mm
C (Shaft Dia): 25mm
No. of Blades: 9
Insert Type: Double Flat Drive
Impeller Weight: 1.85lb (0.84kg)
​
Replacement / Equivalent To:
Jabsco 18786-0001 / 18786-0001B /18786-0001-B / 18786-0001W / 18786-0001-W
Detroit Diesel 23502086
​
JMP Marine Pump(s) Using This Impeller:
JPR-G6400 (Detroit Diesel Replacement)
JPR-G6500 (Detroit Diesel Replacement)
#9001-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
9001-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0047 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 117mm
B (Impeller Width): 88.5mm
C (Shaft Dia): 25mm
No. of Blades: 9
Insert Type: Spline Drive(12)
Impeller Weight: 2.0lb (0.91kg)
​
Replacement / Equivalent To:
Jabsco 18789-0001 / 18789-0001P / 17240-0001/ 17240-0001B
​
JMP Marine Pump(s) Using This Impeller:
JPR-C1905 (Cummins Replacement)
#9100-01K JMP Marine
Marine Flexible Impeller Kit
Kit Includes:
9100-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0012 (O-RING) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 128mm
B (Impeller Width): 101.5mm
C (Shaft Dia): 36mm
No. of Blades: 12
Insert Type: Spline Drive (12)
Impeller Weight: 3.90lb (1.77kg)
​
Replacement / Equivalent To:
Jabsco 31500-0001 / 2999-0001
Yanmar 43600-400410 / 43600-400411
Kashiyama SP-500
​
JMP Marine Pump(s) Using This Impeller:
JPR-65LF (Multi-Purpose Pump)
JPR-M65LF (Multi-Purpose Pump)
JPR-MD65LF (Mitsubishi Replacement Engine Cooling Pump)
#9500-01 JMP Marine
Marine Flexible Impeller
Includes:
9500-01 (FLEXIBLE IMPELLER) - QTY:1
Lubricant
​
Impeller Dimensions & Specs:
A (Impeller Dia): 132mm
B (Impeller Width): 31.5mm
C (Shaft Dia): 25.4mm
No. of Blades: 18
Insert Type: Key Drive
Impeller Weight: 2.0lb (0.91kg)
​
Replacement / Equivalent To:
Jabsco 15299-1000
#IMP0026 JMP Marine
Marine Bronze Impeller
Includes:
IMP0026 (BRONZE IMPELLER) - QTY:1
​
Impeller Dimensions & Specs:
Blade Type: Straight
Material: Bronze
No of Blades: 32
Insert Type: Key Drive
Bolt Hole Anchor Point Qty: 2
Impeller Weight: 8.0lb (3.63kg)
​
Replacement / Equivalent To:
Caterpillar (CAT) 3N-8449 / 3N8449
​
JMP Marine Pump(s) Using This Impeller:
JPR-CT3412 (Caterpillar Replacement)
#IMP002601 JMP Marine
Marine Bronze Impeller
Includes:
IMP002601 (BRONZE IMPELLER) - QTY:1
​
Impeller Dimensions & Specs:
Blade Type: Angled
Material: Bronze
No of Blades: 20
Insert Type: Round Shaft Drive
Bolt Hole Anchor Point Qty: 3
Impeller Weight: 6.0lb (2.72kg)
​
Replacement / Equivalent To:
Cummins 3074619
Gilkes 3155-617
​
JMP Marine Pump(s) Using This Impeller:
JPR-C1900 (Cummins Replacement)
#IMP002602 JMP Marine
Marine Bronze Impeller
Includes:
IMP002602 (BRONZE IMPELLER) - QTY:1
​
Impeller Dimensions & Specs:
Blade Type: Angled
Material: Bronze
No of Blades: 20
Insert Type: Key Drive
Bolt Hole Anchor Point Qty: 2
Impeller Weight: 4.0lb (1.81kg)
Approx Impeller Dia: 142.90mm
Approx Impeller Width: 24.16mm
Approx Impeller Shaft Dia: 20mm
Approx Measurement from Center to Center of Bolt Holes: 38mm
​
Replacement / Equivalent To:
Caterpillar 3N-8214 / 3N8214
​
JMP Marine Pump(s) Using This Impeller:
JPR-CT3408 (Pump discontinued, ONLY parts are available)
#IMP002603 JMP Marine
Marine Bronze Impeller
Includes:
IMP002603 (BRONZE IMPELLER) - QTY:1
​
Impeller Dimensions & Specs:
Blade Type: Straight
Material: Bronze
No of Blades: 32
Insert Type: Round Shaft Drive
Bolt Hole Anchor Point Qty: 3
Impeller Weight: 8.0lb (3.63kg)
​
Replacement / Equivalent To:
Cummins 3897657
​
JMP Marine Pump(s) Using This Impeller:
JPR-C3800 (Cummins Replacement)
#IMP0052 JMP Marine
Marine Bronze Impeller
Includes:
IMP0052 (BRONZE IMPELLER) - QTY:1
​
Impeller Dimensions & Specs:
Blade Type: Angled with Curve
Material: Bronze
No of Blades: 10
Impeller Weight: 4.0lb (1.81kg)
​
Replacement / Equivalent To:
MTU2000 Impeller P/N: 8692010025
MTU2000, MDEC, M90 Series
​
Major Service Kits for MTU2000 (Sold Separately):
JSK005202 - Sea Water Pump
JSK0055 - Fresh Water Pump
#IMP0063 JMP Marine
Marine Bronze Impeller
Includes:
IMP0063 (BRONZE IMPELLER) - QTY:1
​
Impeller Dimensions & Specs:
Blade Type: Angled
Material: Bronze
No of Blades: 20
Insert Type: Key Drive
Bolt Hole Anchor Point Qty: 2
Impeller Weight: 7.0lb (3.18kg)
Approx Impeller Dia: 177mm
Approx Impeller Width: 32mm
Approx Impeller Shaft Dia: 24.5mm
Approx Measurement from Center to Center of Bolt Holes: 46.3mm
​
Replacement / Equivalent To:
Caterpillar 5N-2618 / 5N2618
​
JMP Marine Pump(s) Using This Impeller:
JPR-CT3508 (Caterpillar Replacement)
